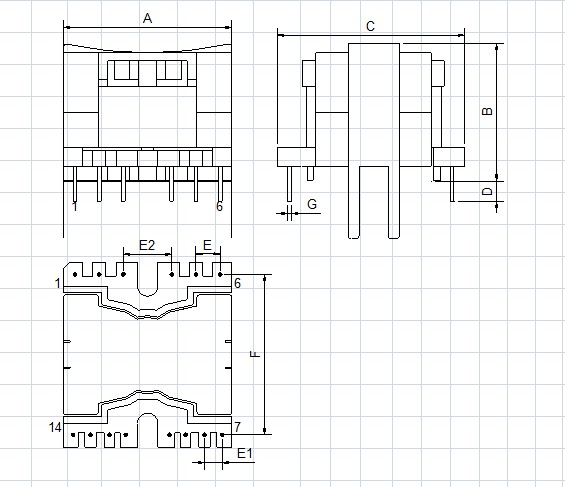

0833-PQ
ELECTRICAL CHARACTERISTICS:
1、INDUCTANCE： 50.0KHz at 0.3V (AMBIENT TEMPERATURE 25℃)

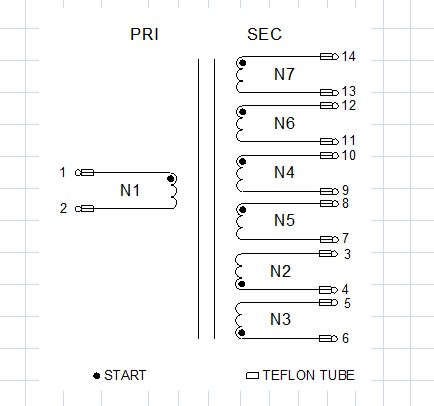

L1-2：1.0mH±10%
2、DC RESISTANCE：AMBIENT TEMP 25℃
R1-2：1.8Ω Max 502BC
4、HI-POT TEST：
PRI TO SEC AC2.0KV/50Hz/5mA/60S
COIL TO CORE AC1.0KV/50Hz/5mA/60S
5、INSULATION RESISTANCE TEST：
COIL TO COIL AND COIL TO CORE DC500V 100 MΩ Min
