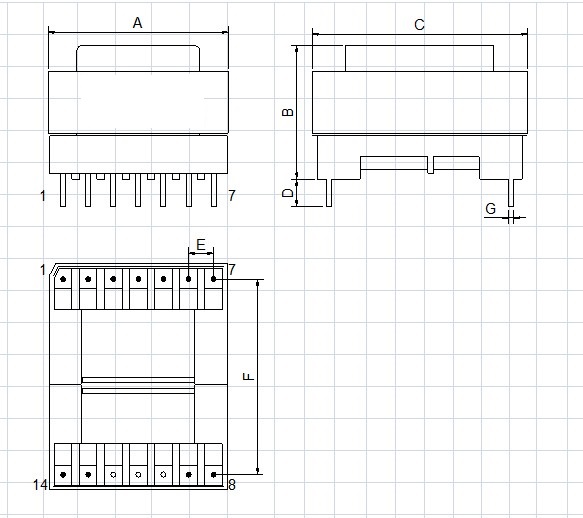

1433-EC
ELECTRICAL CHARACTERISTICS:
1、INDUCTANCE： 100.0KHz at 1.0V (AMBIENT TEMPERATURE 25℃)

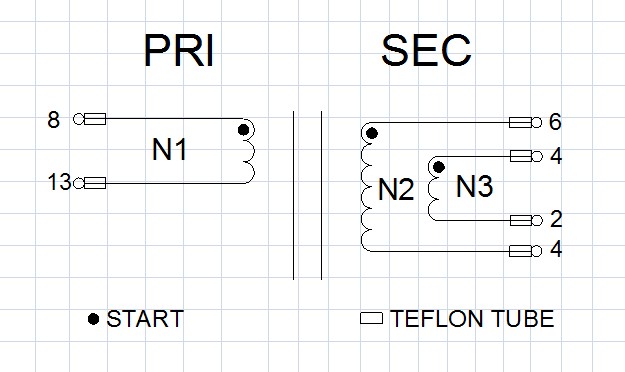

L1-2：250.0uH±10%
2、LEAKAGE INDUCTANCE：100.0KHz at 1.0V Short Other Pin
LK8-13：60.0uH Max 1750 LCR
3、HI-POT TEST：
PRI TO SEC AC2.0KV/50Hz/5mA/60S
COIL TO CORE AC1.0KV/50Hz/5mA/60S
5、INSULATION RESISTANCE TEST：
COIL TO COIL AND COIL TO CORE DC500V 100 MΩ Min
